Neaspec超高分辨散射近場光學顯微鏡

設備簡介
在線咨詢

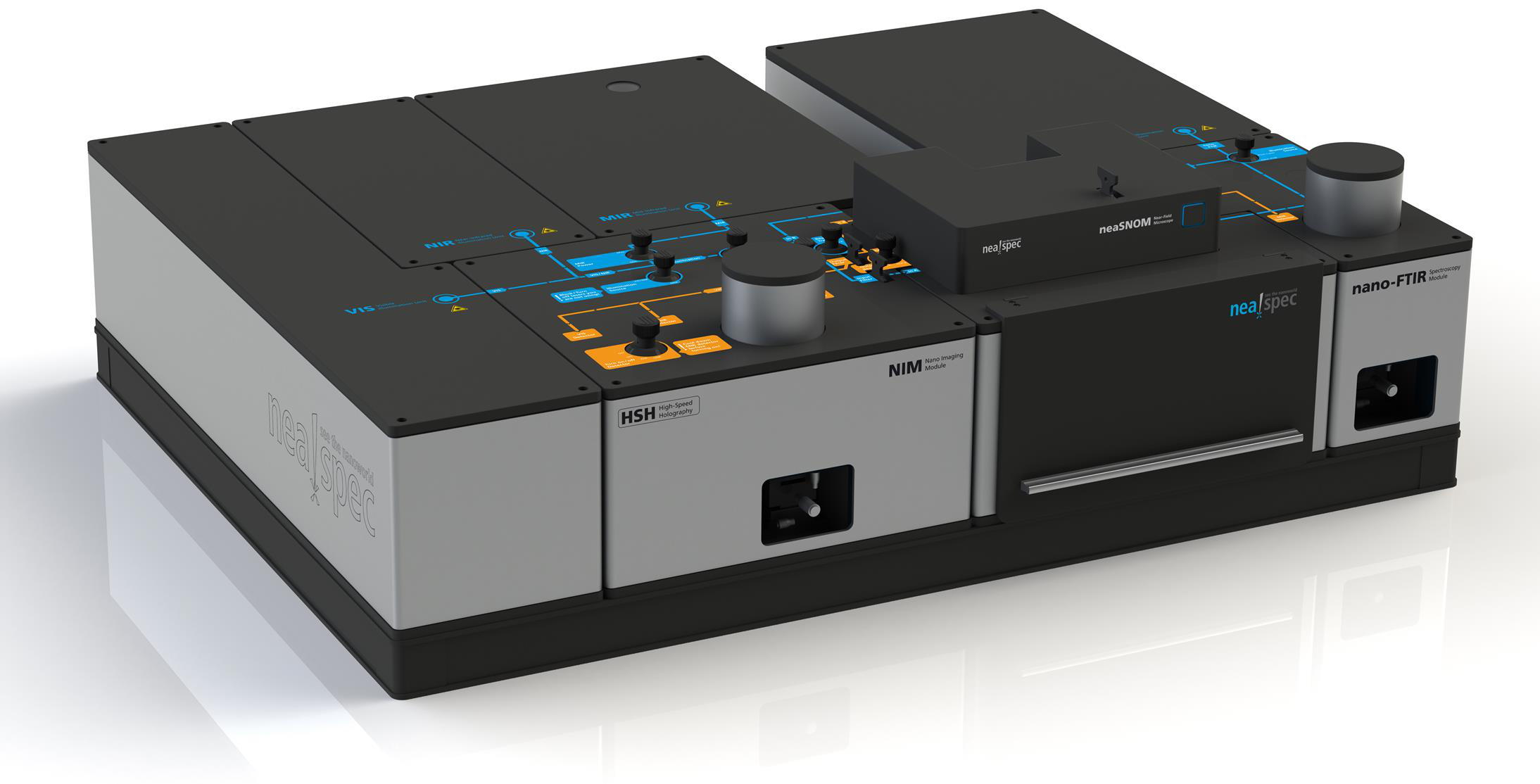

超高分辨散射式近場光學顯微鏡 - neaSNOM系統

產品簡介：

neaSNOM 是德國 neaspec 公司推出的第三代散射式近場光學顯微鏡（簡稱 s-SNOM ），其采用了專利化的散射式核心設計技術，極大的提高了光學分辨率，并且不依賴于入射激光的波長，能夠在可見、紅外和太赫茲光譜范圍內，提供優于 10nm 空間分辨率的光譜和近場光學圖像。由于其高度的可靠性和可重復性。 neaSNOM 業已成為納米光學領域熱點研究方向的首選科研設備，在等離基元、納米FTIR和太赫茲等眾多研究方向得到了許多重要科研成果。

技術特點和優勢：

• neaSNOM是目前世界上 唯一成熟的 s-SNOM產品

• 專利保護的散射式近場光學測量技術

——獨有的極高10 nm空間分辨率

• 專利的高階解調背景壓縮技術

——在獲得10nm空間分辨率的同時保持極高的信噪比

• 專 利保護的干涉式近場信號探測單元

• 專利的贗外差干涉式探測技術

——能夠獲得對近場信號強度和相位的同步成像

• 專利保護的反射式光學系統

——用于寬波長范圍的光源：可見、紅外以至太赫茲

• 高穩定性的 AFM系統 ，

——同時優化了納米尺度下光學測量

•雙光束設計

——極高的光學接入角：水平方向180°，垂直方向60°

•操作和樣品準備簡單

——僅需要常規的AFM樣品準備過程
